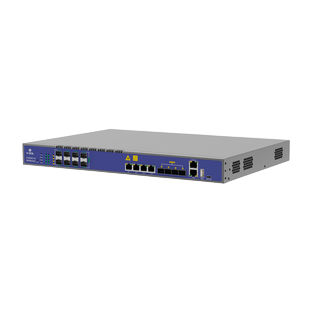

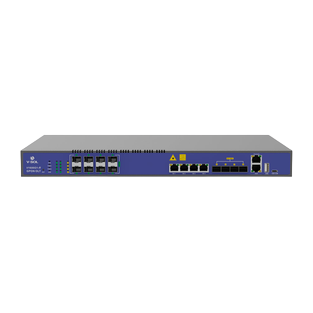

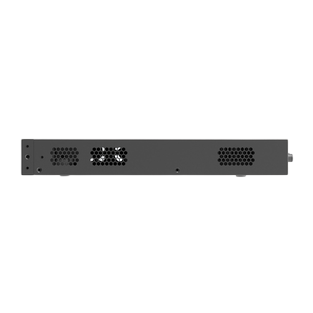

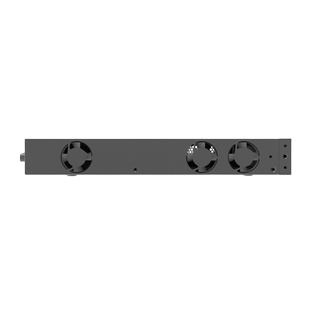

V-SOL V1600G1-R 8-Port Layer 3 GPON OLT with 4×10G SFP+ Uplinks

The V-SOL V1600G1-R is a compact eight-port Layer 3 GPON OLT designed for FTTH, FTTB, FTTM, commercial buildings, industrial parks, and cost-sensitive fiber-access deployments. It combines eight GPON interfaces with Gigabit and 10-Gigabit uplinks, Layer 3 routing, carrier-grade network protection, and flexible hot-swappable power options.

Key Features:

• Eight GPON SFP interfaces
• Maximum splitting ratio of 1:128 per PON port
• Supports up to 20 km GPON transmission distance
• Four Gigabit RJ45 uplink ports
• Four SFP/SFP+ uplink ports supporting Gigabit and 10-Gigabit connectivity
• GPON downstream speed up to 2.488 Gbps
• GPON upstream speed up to 1.244 Gbps
• Supports Class B+, C, C+, C++, C+++, and C++++ GPON modules
• Layer 3 static and dynamic routing
• RIP v1/v2, RIPng, OSPF v2, and OSPF v3 support
• DHCP server, relay, snooping, and Option 82
• VLAN, QinQ, ACL, QoS, LACP, RSTP, and MSTP support
• ONT automatic discovery and remote software upgrades
• SNMP, Web, Telnet, CLI, EMS, and SSH management
• Hot-swappable AC or DC power options
• Compact 1U 19-inch rackmount design
• Suitable for ISP and telecom fiber-access networks
